TP-SW5G-24

Tycon Power Systems

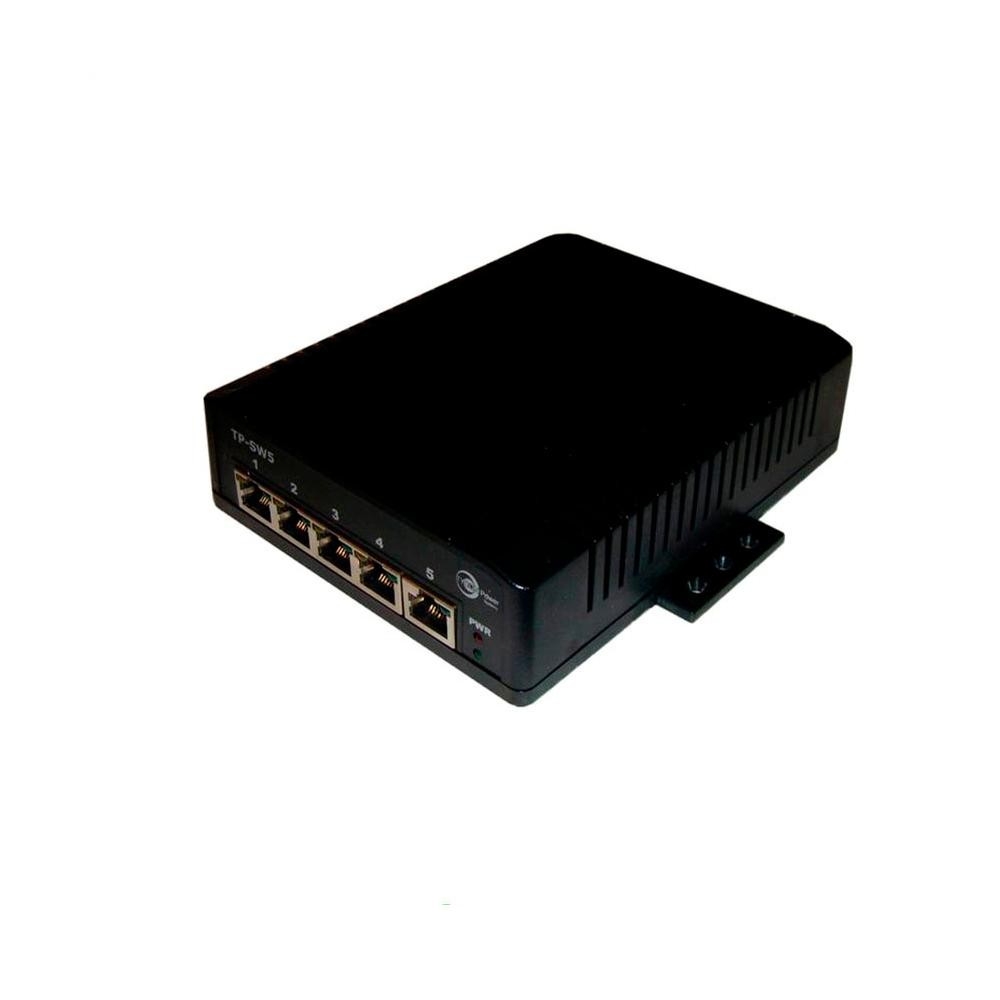

Tycon Power TP-SW5G-24 | 5 Port Unmanaged Industrial GigE 802.3at PoE Network Switch, 10-36VDC Wire Term Input, 4x PoE Ports + 1x Uplink Port, Supports up to 70W Total Output Power, Includes DIN Rail Mt Kit


Product Highlights
  • • Remotely Power Equipment thru CAT5 Cable up to 100m
  • • Up to 2A per Port
  • • Built-in Surge Protection
  • • Automatic MDI/MDI-X Crossover
  • • Automatic Speed and Duplex Sensing

    • Model#: TP-SW5G-24

    Sku: IT2857



    MSRP: $249.99

    In Stock

    Your Price: $249.99






    MODEL: TP-SW5G-24

    The SW5 Series Power over Ethernet (PoE) switches offered by Tycon Power are fully automatic high speed 5 port Ethernet switches with up to 2A of PoE power per port.

    IEEE802.3af/at Compliant 48VDC 10/100/1000MB PoE Switch. Switch accepts 12-36VDC power via a wire terminal connector on the back of the Switch or via 48VDC PoE into the 802.3af/at compliant uplink port (90W max). Perfect for remote solar/battery systems. 35W per port. 70W Max Total.

    On the universal voltage models (“-NC”) the PoE output voltage = the input voltage so it is universal in its application. The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device.

    Tycon Power sells a variety of power supplies in 60W, 120W and 180W sizes. 18VDC, 24VDC and 48VDC are available. All the Switches have DIN Rail mounts included for convenient DIN rail mounting

    Applications

    • Wireless Access Points and Client Devices
    • IP Phone and Security Camera Systems

    • PoE Lighting Applications


    Datasheet

    PDF File Tycon Power TP-SW5G-24 | 5 Port Unmanaged Industrial GigE 802.3at PoE Network Switch, 10-36VDC Wire Term Input, 4x PoE Ports + 1x Uplink Port, Supports up to 70W Total Output Power, Includes DIN Rail Mt Kit
